Problem With Motorola Paging Under NAT413 And COM631
DEFINE PRINTER (1) OUTPUT '1164'
PRINT=((1),AM=COMP,OPEN=ACC,CLOSE=CMD)
Last update: 28 April 2005
During parallel tests against our production jobs to find differences between PRODUCTION (NAT232, COM513, ADA742) and DEVELOPMENT (NAT413, COM631, ADA742), the text of PRINTER OUTPUT '1164' didn't reach the target, in this case the Motorola pager, which is connected to the WirelessOffice Pager Gateway.
The Natural batch program is using Com-plete/Access functions to pass information to a special defined terminal, in this example TID1164, which is defined in Com-plete's TIBTAB (Terminal Information Block Table).
Analysis showed that NAT413/COM631/ACCESS adds a longer header in front of the text compared with NAT232/COM513/ACCESS. The ASCII code of the header in hex: 0C/0D/0C. WirelessOffice Pager Gateway, therefore, cannot detect the destination, which is part of the text. So the offset must be changed, the beginning of the text message. This would work for batch. Obviously, when the same program is executed online, the header changes again. SAG Support: "Please keep in mind that Com-plete is going to treat all "printout" requests the same whether they come from batch or online ..."
The following is what my tests show.
By the way, APPLYMOD=72 is set,
that means to force a form feed
AT THE END of every printout printed.
COM631/NAT413 Spool Online:
A240F0F0 F0F140F1 F57AF1F3 40C48985
A38599A2 409485A2 A2818785 40969593 89958561
COM631/NAT413 Spool Batch:
A1F1F0F0 F0F140F1 F57AF3F5 40C48985
A38599A2 409485A2 A2818785 408281A3 83886200

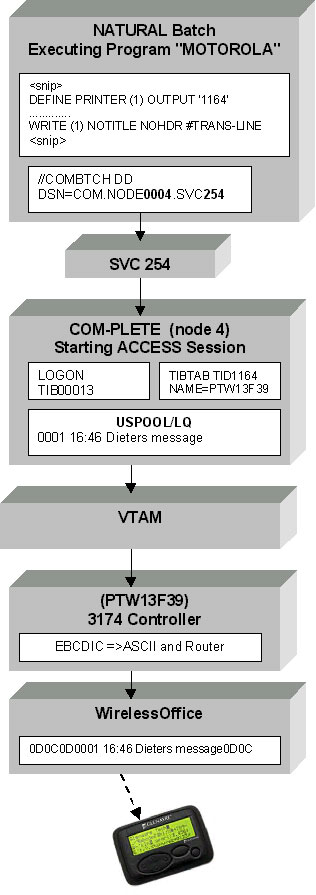

The following describes in general how paging did work
under NAT232 and COM513 (no TCP/IP under COM513). It's only modified to test under NAT413 and COM631:
Natural program MOTOROLA:
0010 DEFINE DATA
0020 LOCAL
0030 1 #TRANS-LINE (A130)
0040 1 #TIMN (N7) 1 REDEFINE #TIMN
0050 2 #HH (A2)
0060 2 #MM (A2)
0070 1 #TIME (A5)
0080 END-DEFINE
0090 DEFINE PRINTER (1) OUTPUT '1164'
0100 FORMAT (1) LS=131
0110 MOVE *TIMN TO #TIMN
0120 COMPRESS #HH ':' #MM INTO #TIME LEAVING NO SPACE
0130 COMPRESS '0001' #TIME
0140 'Dieters message' INTO #TRANS-LINE
0150 WRITE (1) NOTITLE NOHDR #TRANS-LINE
0160 WRITE NOTITLE NOHDR #TRANS-LINE
0170 CLOSE PRINTER (1)
0180 FETCH RETURN 'USR4004P' /* dynamic parms
0190 END
Part of Com-plete's TIBTAB
(Terminal Information Block Table)
(snip)
******************************************************
* TIDS FOR MOTOROLA PAGER SYSTEM
*
*
* 1164 IS A PRIMARY MOTOROLA TID
TID1164 TIB 1164,VTAM,3288L,NAME=PTW13F39,RMC=1,
OPT=(NOSHARE,ACQUIRE),GROUP=(ALL=NO)
(snip)
Batch Job
000001 //ZINDWSMO JOB (IT,DBIDA),'MOTOROLA'..........
000002 //*USER=xxxxxxx
000003 /*ROUTE PRINT R912
000004 //* --------------------------------------------------------------
000005 //* ---- WRITE TO MOTOROLA PAGER
000006 //* --------------------------------------------------------------
000007 //NAT413 EXEC PGM=NAT413BA,
000008 // TIME=1400,COND=(0,LT)
000009 //STEPLIB DD DISP=SHR,DSN=NATURAL.NAT413.USER.LOAD
000010 // DD DISP=SHR,DSN=ADABAS.ADA742.LOAD
000011 // DD DISP=SHR,DSN=COM.V631.USER.LOAD
000012 // DD DISP=SHR,DSN=COM.V631.LOA3
000013 // DD DISP=SHR,DSN=COM.V631.L004
000014 // DD DISP=SHR,DSN=COM.V631.LOAD
000015 // DD DISP=SHR,DSN=COM.V631.APS272.LD06
000016 // DD DISP=SHR,DSN=COM.V631.APS272.LD00
000017 //DDPRINT DD SYSOUT=*
000018 //DDDRUCK DD SYSOUT=*
000019 //MPMDUMP DD DUMMY
000020 //SYSUDUMP DD DUMMY
000021 //DDKARTE DD DUMMY
000022 //COMBTCH DD DISP=SHR,DSN=COM.NODE0004.SVC254 <<== connection to Com-plete
000023 //DDCARD DD DISP=SHR,DSN=ADABAS.TEST.CNTLLIB(RUNDBID)
000024 //CMPRINT DD SYSOUT=*
000025 //CMPRMIN DD *
000026 IM=D,ID=',',DC='.',INTENS=1
000027 NAFSIZE=0,DLISIZE=0,DB2SIZE=0,MADIO=0,MAXCL=0,MT=0
000028 BPI=(TYPE=NAT,SEQ=0,SIZE=512,NAME=' ')
000029 BPI=(TYPE=EDIT,SEQ=0,SIZE=512,NAME=' ')
000030 AUTO=OFF,SYS=TEST
000031 PRINT=((1),AM=COMP,OPEN=ACC,CLOSE=CMD)
000032 FNAT=(001,006)
000033 FUSER=(001,008)
000034 FSEC=(001,007)
000035 FDIC=(001,109)
000036 /*
000037 //CMSYNIN DD DISP=SHR,DSN=DIETER.DBA.CNTL(NSC)
000038 // DD *
000039 LOGON LIB1
000040 SYSPROF
000041 MOTOROLA
000042 SYSFILE
000043 FIN
000044 //
Batch job execution
16.46.09 JOB04218 ---- TUESDAY, 12 APR 2005 ----
16.46.09 JOB04218 IRR010I USERID DIETER IS ASSIGNED TO THIS JOB.
16.46.09 JOB04218 ICH70001I DIETER LAST ACCESS AT 16:25:29 ON TUESDAY, APRIL
16.46.09 JOB04218 $HASP373 DIETERMO STARTED - INIT 85 - CLASS 1 - SYS SYSP
16.46.11 JOB04218 +LOGON OK, TIB00013 (COMTEST )
16.46.11 JOB04218 - --TIMINGS (M
16.46.11 JOB04218 -JOBNAME STEPNAME PROCSTEP RC EXCP CONN TCB SRB
16.46.11 JOB04218 -DIETERMO NAT413 00 250 451 .00 .00
16.46.11 JOB04218 -DIETERMO ENDED. NAME-MOTOROLA TOTAL TCB CPU TIM
16.46.11 JOB04218 $HASP395 DIETERMO ENDED
(snip)
NEXT MOTOROLA
0001 16:46 Dieters message
Return Code of USR4004P 0
IM=D,ID=',',DC='.',INTENS=1 NAFSIZE=0,DLISIZE=0,DB2SIZE=0,MADIO=0,MAXC
L=0,MT=0 BPI=(TYPE=NAT,SEQ=0,SIZE=512,NAME=' ') BPI=(TYPE=EDIT,SEQ=0,S
IZE=512,NAME=' ') AUTO=OFF,SYS=TEST PRINT=((1),AM=COMP,OPEN=ACC,CLOSE=
CMD,ROUTE=ON) FNAT=(001,006) FUSER=(001,008) FSEC=(001,007) FDIC=(001,
109)
(snip)
NEXT FIN
Com-plete job log
16:46:11.04 COMSMF0001-4 LOGON: USER=DIETER LU=DIETERMO TID=13 ACCT=MODEL=SYSBAT
16:46:11.04 COMSMF0005-4 LOGON: AUTH=0 RMC= SMC=1234567
16:46:11.13 COMSMF0001-4 LOGOFF: USER=DIETER LU=DIETERMO TID=13 ACCT=MODEL=SYSBA
16:46:11.13 COMSMF0005-4 LOGOFF: AUTH=0 RMC= SMC=1234567
The problem is under investigation since 13 April 2005 at SAG (#574274).
A possible workaround in production (20 April 2005):
Dedicated two WirelessOffice PCs, one for pages coming from online and one for coming from batch.
Solution recommended by SAG and tested (28 April 2005):
In addition to statement 0100, a new define printer (2) statement 0110 with output CCONTROL must be inserted. CCONTROL is the name of a special printer control table associated to the printer "n-1"; it must not be modified. For further information, refer to "Printer-Advance Control Characters" (in the Natural Operations for Mainframes documentation). One blank (ASA character) must also be inserted in our message, see statement 0200. WRITE and CLOSE statements must also refer to printer (2). All changes are marked in red.
0010 DEFINE DATA
0020 LOCAL
0030 1 #TRANS-LINE (A130)
0040 1 #TIMN (N7) 1 REDEFINE #TIMN
0050 2 #HH (A2)
0060 2 #MM (A2)
0070 1 #TIME (A5)
0080 1 #ENV (A25)
0090 END-DEFINE
0100 DEFINE PRINTER (1) OUTPUT '1164' /* NAME=PTW13F39
0110 DEFINE PRINTER (2) OUTPUT 'CCONTROL'
0120 FORMAT (2) LS=131
0130 MOVE *TIMN TO #TIMN
0140 IF *DEVICE = 'BATCH'
0150 #ENV := 'BATCH 1164 CCONTROL'
0160 ELSE
0170 #ENV := 'ONLINE 1164 CCONTROL'
0180 END-IF
0190 COMPRESS #HH ':' #MM INTO #TIME LEAVING NO SPACE
0200 COMPRESS ' 0001' #TIME 'DIETERS MESSAGE' #ENV INTO #TRANS-LINE
0210 WRITE (2) NOTITLE NOHDR #TRANS-LINE
0220 WRITE NOTITLE NOHDR #TRANS-LINE (AL=60)
0230 CLOSE PRINTER (2)
0240 FETCH RETURN 'USR4004P'
0250 END
Now, online and batch output has the same header again and can be handled by one WirelessOffice Pager Gateway. The program looks a little bit confusing with printer 1 and 2 but it works. It seems that we exchanged our workaround with SAG's workaround.
